Name: Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-50/75/100K
Price: 25.00 USD
Availability: InStock

घर > उत्पादों > स्टेनलेस स्टील वेल्डिंग मशीन >

Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications

stainless steel welding machine heavy-duty

welding machine structural reinforcement

stainless steel welder with warranty

उत्पत्ति के प्लेस:

चीन

ब्रांड नाम:

hwashi

प्रमाणन:

CE/CCC/ISO

मॉडल संख्या:

WL-SF-50/75/100K

संपर्क करें

एक उद्धरण का अनुरोध करें

उत्पाद विवरण

नमूना:

WL-SF-50/75/100K

इनपुट पावर (V/φ):

380/3

रेटेड पावर (केवीए):

50/75/100

लागू सामग्री:

स्टेनलेस स्टील, कार्बन स्टील, एल्यूमीनियम, धातु

इलेक्ट्रोड बल (KG):

250-400

वेल्डिंग मोटाई (एमएम):

3.0+3.0

गारंटी:

1 वर्ष

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा

1 सेट

मूल्य

बातचीत योग्य

पैकेजिंग विवरण

समुद्र योग्य लकड़ी का पैकेज

प्रसव के समय

आपका भुगतान प्राप्त होने के 60 कार्य दिवस

भुगतान शर्तें

एल/सी, टी/टी

आपूर्ति की क्षमता

प्रति माह 50 सेट

संबंधित उत्पाद

वीडियो

टिकाऊ C प्रकार क्रैंक आर्म टेबल स्पॉट वेल्डिंग मशीन सटीक झुकने के कार्य के लिए

सर्वोत्तम मूल्य प्राप्त करें

वीडियो

Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications

सर्वोत्तम मूल्य प्राप्त करें

वीडियो

Maximize Productivity Minimize Errors Hwashi’s Seven Axis Double Heads Spot Welder

सर्वोत्तम मूल्य प्राप्त करें

वीडियो

From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding

सर्वोत्तम मूल्य प्राप्त करें

संपर्क करें

+86-13380655800

export_trade@hwashi.com

86-752-3528326

अभी संपर्क करें

उत्पाद वर्णन

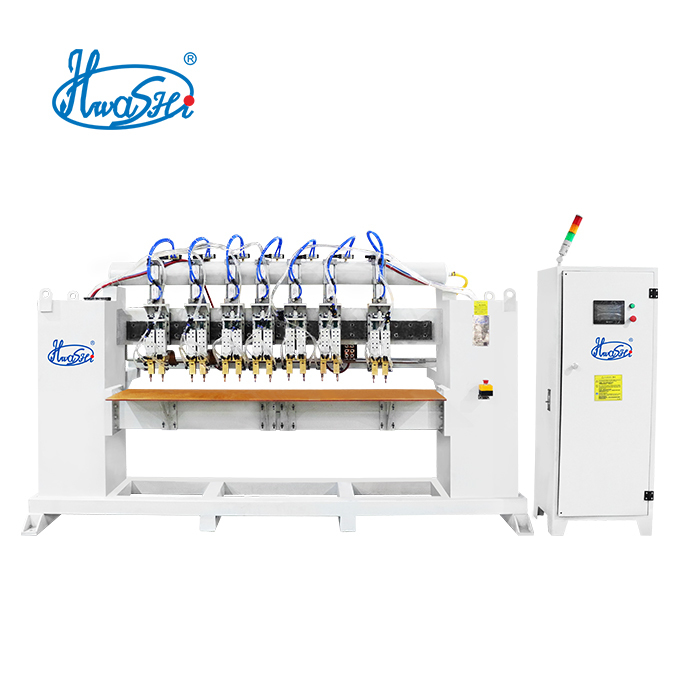

Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications

The Sheet Metal Reinforcement Welding Machine is a high-performance industrial equipment designed for seamless welding of metal sheets (e.g., steel, aluminum, stainless steel) in structural reinforcement applications. Combining advanced arc welding technology with automated precision, it ensures robust joint strength, minimal deformation, and superior durability for heavy-duty fabrication.


Intelligent welding control system Intelligent Touch Screen Controller Input and read welding parameters. The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily	Welding platform Flat big copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person.

Standard Welding Electrode Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nut, or screws, etc.	Easy Set up and Operation. Comfortable working position: There is no need to hold the workpiece during welding; Pressurization is also automatic, greatly reducing the physical burden on the operator.

Key Features

1.Heavy-Duty Welding Capacity

Supports MIG/MAG, TIG, and Spot Welding modes for versatile sheet metal joining.
Welds materials up to 8mm thickness with stable arc control.

2.Intelligent Power System

Inverter-based power supply with 220V/380V dual voltage compatibility.
Energy-saving design reduces power consumption by 20% compared to conventional models.

3.Precision Control

Digital LCD interface with programmable parameters (current: 50-350A, voltage: 15-30V).
Auto-calibration for wire feed speed and gas flow (argon/CO₂).

Constructed with high-grade stainless steel, the entire frame and key components of this equipment offer exceptional resistance to corrosion, wear, and deformation. The robust structure ensures stability even during prolonged and heavy-duty operations, making it suitable for high-volume production environments. The Square Curved C Type Crank Arm is designed to withstand significant mechanical stress, providing consistent performance over years of use. This focus on quality materials not only extends the equipment’s lifespan but also minimizes maintenance needs, reducing downtime and operational costs.

Table Spot Welding Machine
1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.
4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.
5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.

Specification

Model	WL-SF-50/75/100K
Input Power (V/φ)	380/3
Rated Power (KVA)	50/75/100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Wleding Thickness (MM)	3.0+3.0
Warranty	1 years

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Applicable industries:

Various industries such as chassis and cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, etc.

Factory & Certificate

HWASHI : 22 years+ experience welding solutions expert

Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
